Setup Guide
Play this video for the setup guide
How do I calibrate my Pixel Gunner?
For the best results, calibrate your Pixel Gunner from the desktop before launching the system.

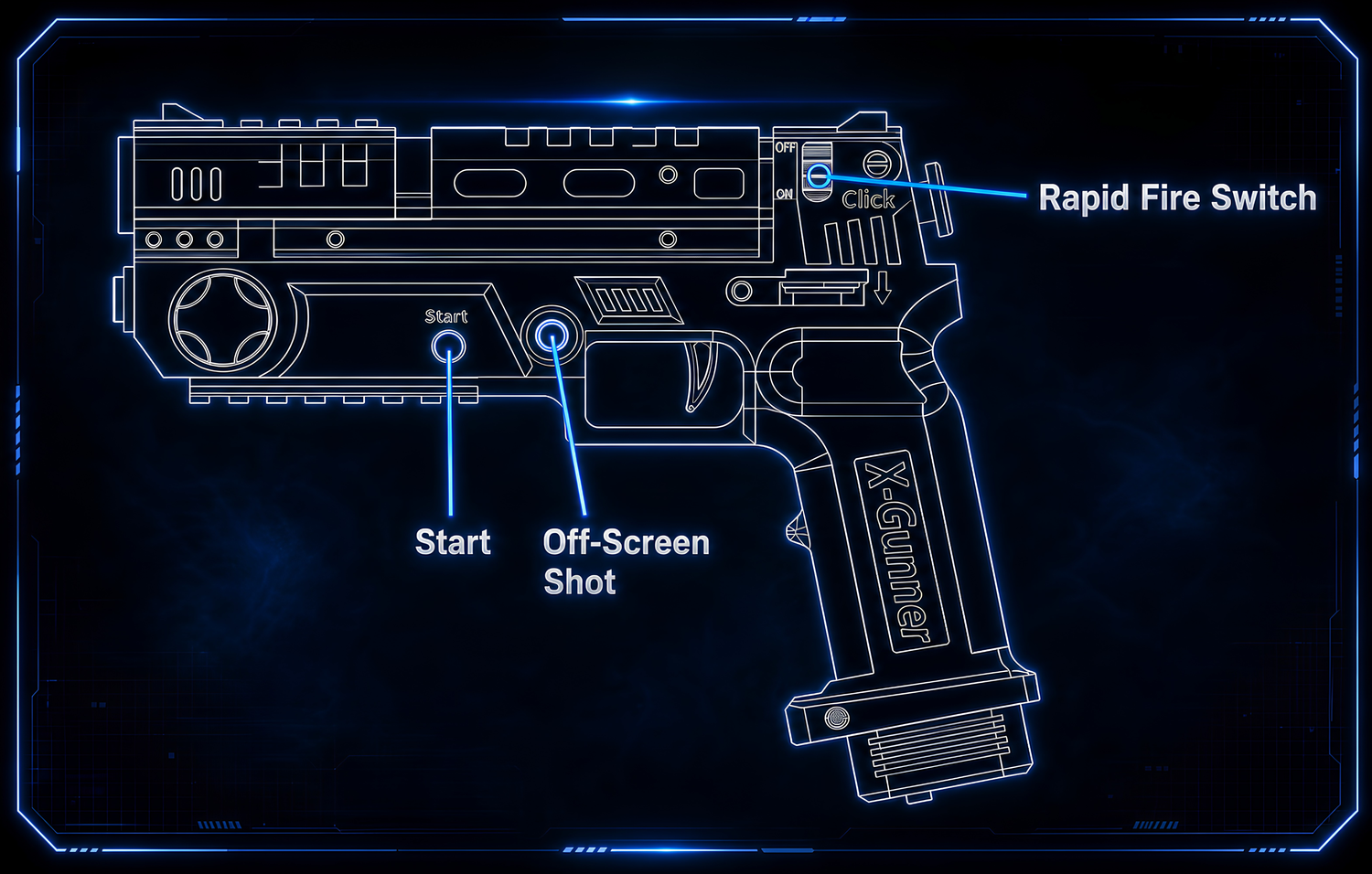

Before calibrating, make sure the Rapid Fire Switch is turned off.
1. Press Space and the Start button at the same time to enter Pause Mode.
2. Pull the trigger once to begin calibration.
3. Aim and calibrate the following five positions in order: centre, top, bottom, left and right.
Once calibration is complete, the Pixel Gunner will vibrate once and save the settings automatically. It will then exit Calibration Mode.

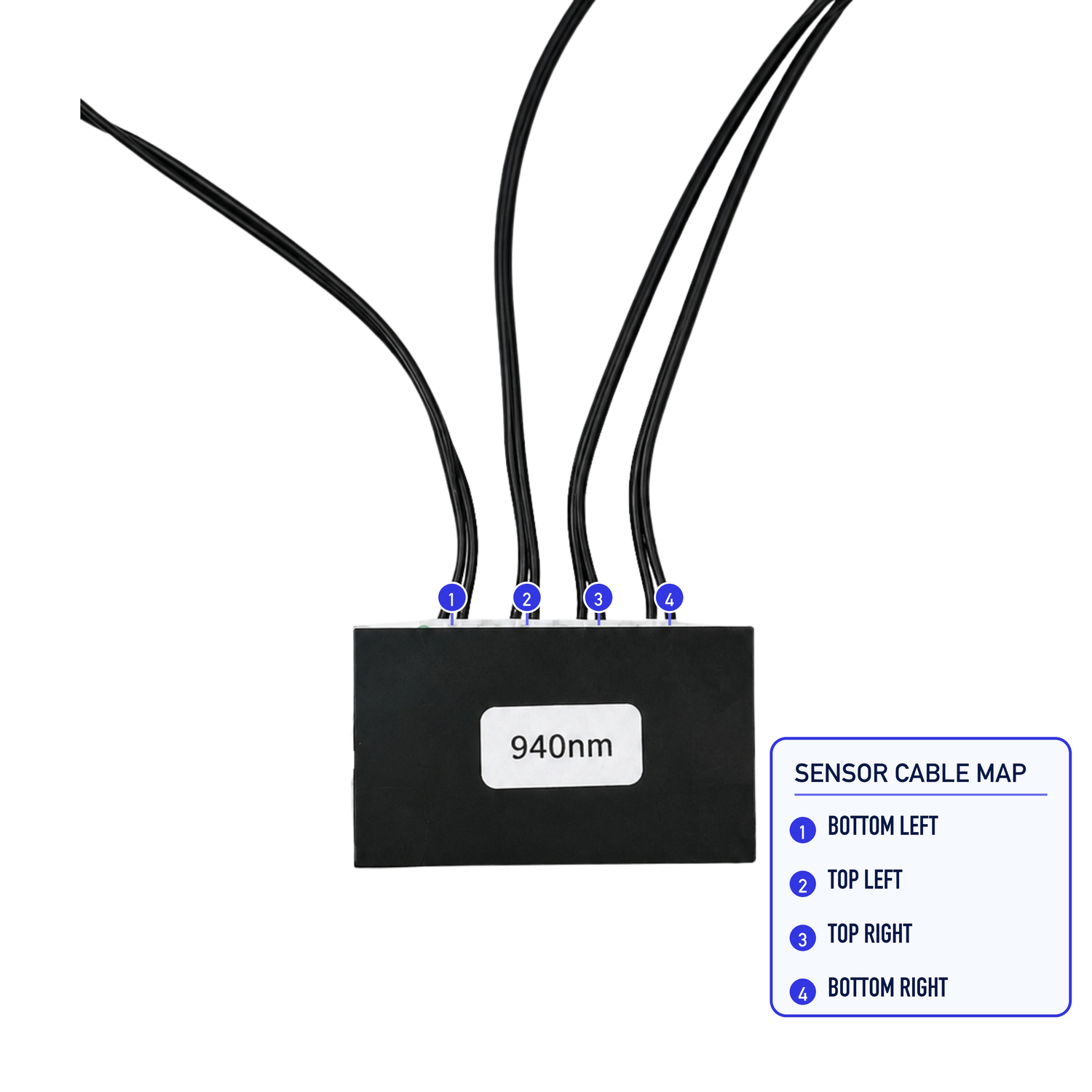

IR Sensor Placement Guide
The Pixel Gunner uses four IR sensors positioned around your screen for accurate and responsive tracking. Install each numbered sensor in its corresponding location

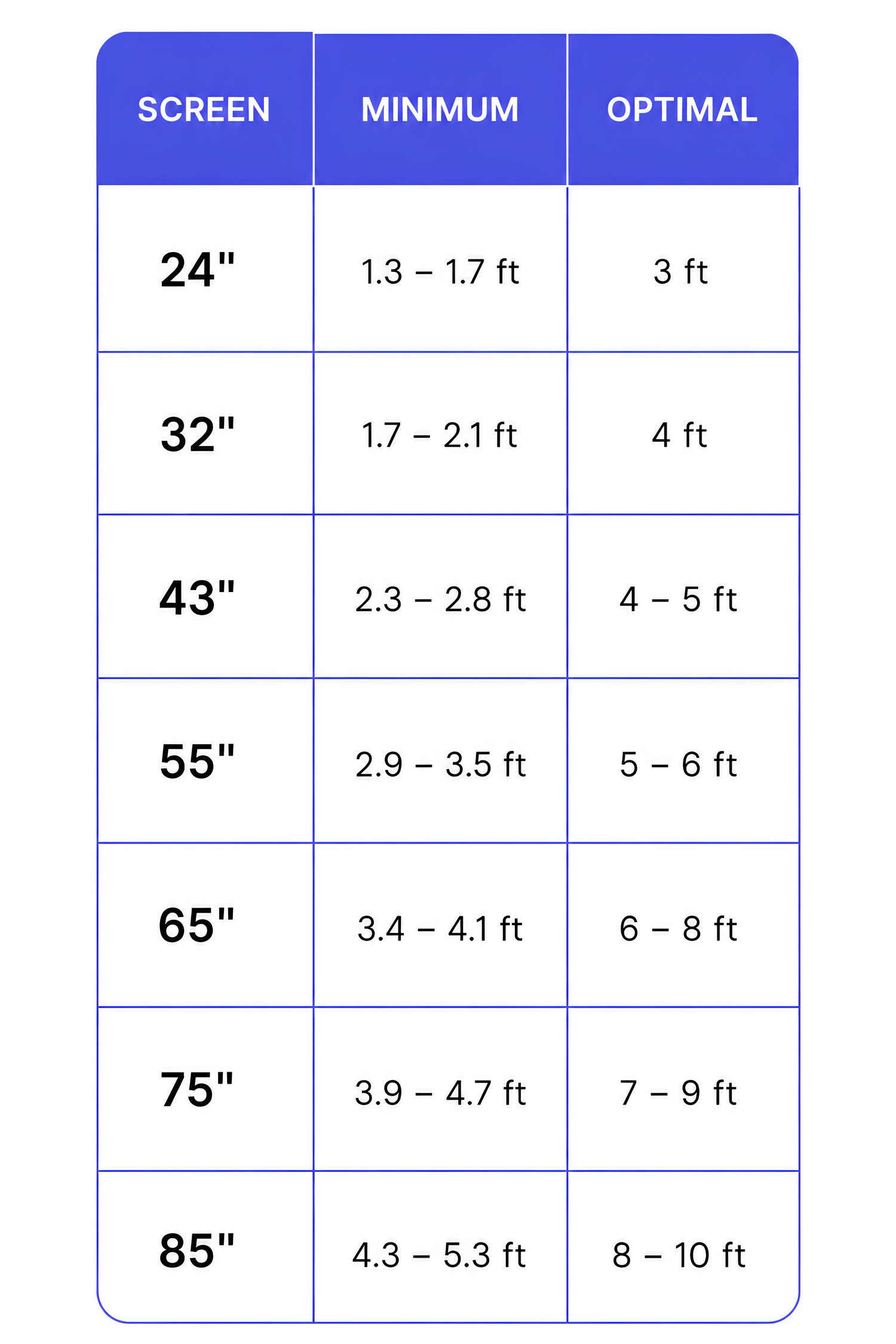

Screen Size Guide
Bigger does not always mean better. For the sweet-spot experience we recommend a 33"–55" screen. The bigger the screen, the further you need to stand.
